Elastomer Kit – Heusinkveld Sprint

Upgrade your brake pedal with a more progressive and realistic feel

The Sim Pedals Sprint Elastomer Kit is an optional upgrade for those who own Sprint pedals with the previous specification elastomers. This kit includes the new injection-molded brake elastomers made from thermosetting materials , the same ones first introduced in the Ultimate+ pedals.

Why upgrade your Sprint brake pedal?

• More progressive feel : more initial travel and clear hardening as force increases.

• Firmer rebound : more natural response to decreased pressure, with less delay.

• Enhanced Durability : Superior fatigue resistance, tested for over 1 million cycles without loss of performance.

“It's surprising how many drivers believe that braking is only used to reduce speed...”

Kit contents

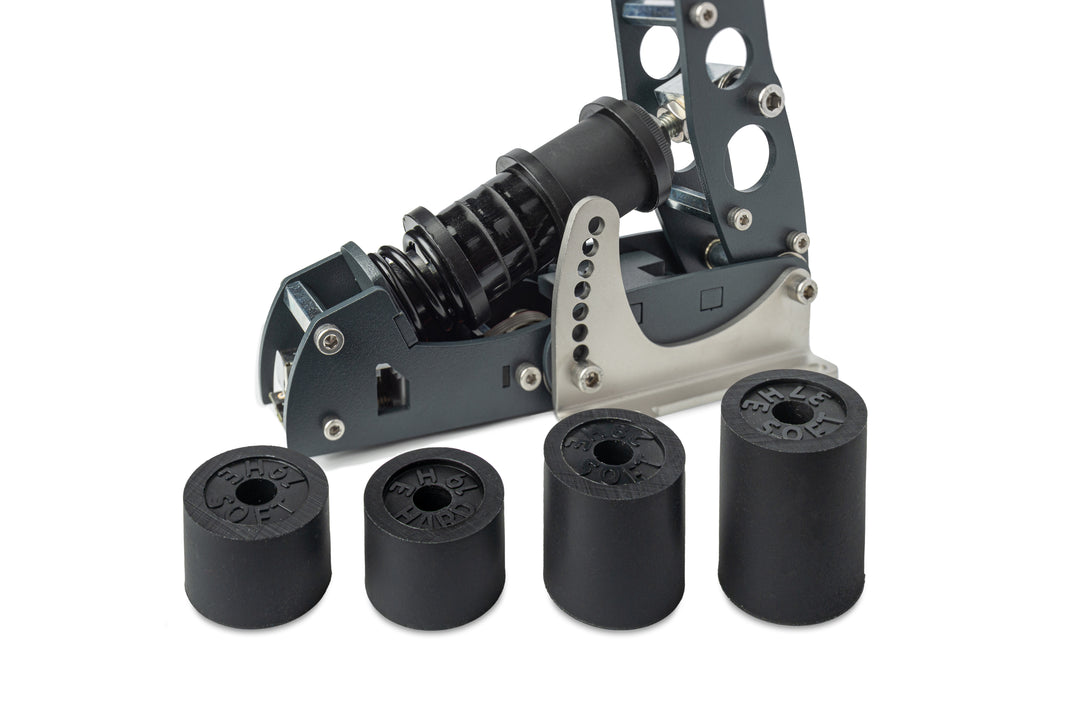

The Elastomer Kit – Sprint includes 4 elastomers with length and hardness markings:

• 1x 19mm hard
• 1x 19mm soft
• 1x 28mm soft
• 1x 37mm soft

Note : Metal discs and spacers are not included. You must reuse the ones that came with your original Sprint pedal.

Check before buying

• If your current elastomers have the length and hardness ("soft" or "hard") engraved, you already have this version installed.
• If they are not marked, you are using elastomers of the previous specification and can benefit from this upgrade.

Compatibility

Compatible with:

• Sim Pedals Sprint (all versions)
• Sim Pedals Sprint – Team Redline Edition

Not compatible with:

• Sim Pedals Ultimate (classic version, not plus)
• Sim Pedals Pro

This kit is not suitable for classic Ultimate pedals, as the internal diameter does not match and they can be damaged when using the original metal discs.

Configurations and braking force

• Allows up to 6 different resistance configurations by combining the elastomers in the kit.
• From a smooth response to a very firm brake feel.
• Recalibration via SmartControl is required after installation for optimal performance.

Available resources

• Installation manual available on the official Heusinkveld support site.
• Step-by-step video tutorial .
• Complete information on stack configuration and braking curves in the updated Sprint manual .

Feel the brake as it should be

With the Heusinkveld Sprint Elastomer Kit , you can customize the brake feel to your exact liking. A recommended upgrade for sim racers looking for more realistic, progressive, and high-performance braking .
